This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.

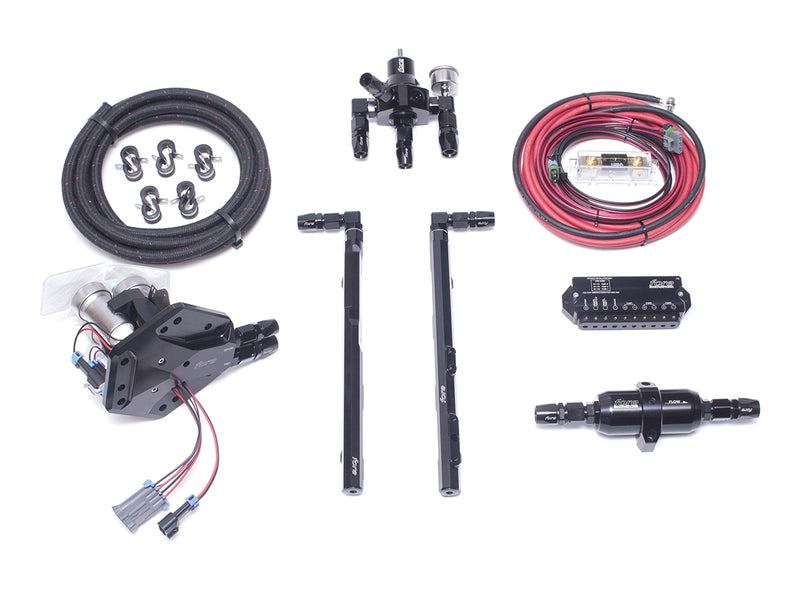

SN95 4V L3 Fuel System (triple pump)
$2,039.00
Fuel Pumps & Fuel Systems
Specifications
- Brand
- Fore Innovations
- SKU
- 55-633
- Category
- Fuel Pumps & Fuel Systems
Specs are taken from the manufacturer listing. Confirm fitment for your car before ordering.
Details
1800 rwhp capable return fuel system with simple and effective hose routing. The feed line enters our F4i regulator, then distribution lines feed to the rear of both rails.
- up to 1800 rwhp, discreet hose routing
- Fuel rails routed in PARALLEL
- Fuel pressure regulator mounted BEFORE fuel rails
INCLUDES
- SN95 Fuel Pump Module (triple pump)
- 88mm Inline Fuel Filter
- F4i Fuel Pressure Regulator
- SN95 4V Billet Fuel Rails
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing:
35 feet of fuel line and 10 matching hose ends
Qty 6, AN to o-ring straight fittings
Qty 4, AN to o-ring 90 degree low profile fittings
Qty 3, o-ring plugs
Qty 2, 0.6 o-ring extensions
Qty 12, hose straps with stainless mounting screws
Qty 2, 1/8 NPT plugs
Qty 6, AN to o-ring straight fittings
Qty 4, AN to o-ring 90 degree low profile fittings
Qty 3, o-ring plugs
Qty 2, 0.6 o-ring extensions
Qty 12, hose straps with stainless mounting screws
Qty 2, 1/8 NPT plugs
This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components, but we will not assist with tuning and/or interfacing to the OE harness, ECU, or FPDM(s).
