Fore Innovations
SN95 4V L3 Fuel System (dual pump)
$1,851.00
Fuel Pumps & Fuel Systems
Specifications
- Brand
- Fore Innovations
- SKU
- 55-623
- Category
- Fuel Pumps & Fuel Systems
Specs are taken from the manufacturer listing. Confirm fitment for your car before ordering.
Details
1200 rwhp capable return fuel system with simple and effective hose routing. The feed line enters our F4i regulator, then distribution lines feed to the rear of both rails.
Fuel system becomes E85 capable by choosing F90000267, F90000274, F90000285 fuel pumps AND microglass SSD or stainless filtration. We generally prefer the L2 or L4 systems over the L3 configuration since the engine must be able to start on fuel vapor. Engine start with E85 may be challenging and will require additional consideration from the tuner.

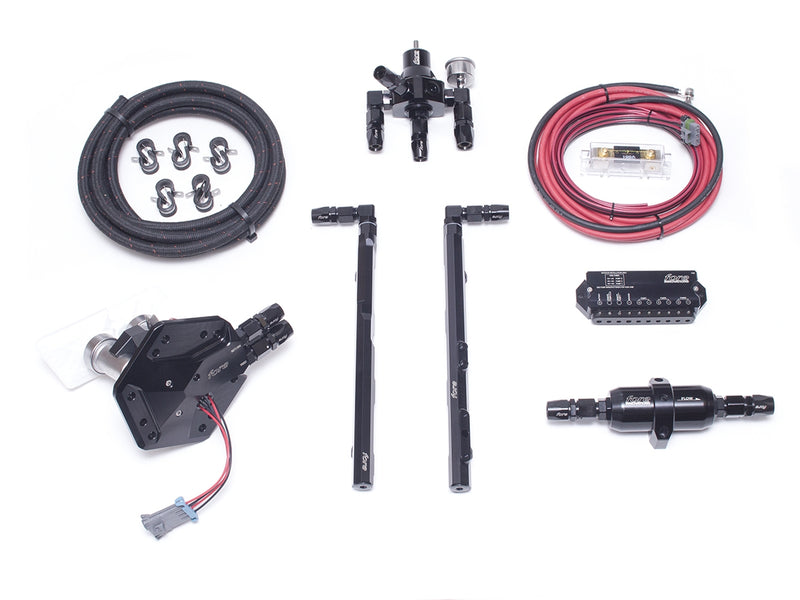

INCLUDES
- SN95 Fuel Pump Module (dual pump)
- 88mm Inline Fuel Filter
- F4i Fuel Pressure Regulator
- SN95 4V Billet Fuel Rails
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing:
-35 feet of fuel line and 10 matching hose ends
-Qty 6, AN to o-ring straight fittings
-Qty 4, AN to o-ring 90 degree low profile fittings
-Qty 3, o-ring plugs
-Qty 2, 0.6 o-ring extensions
-Qty 12, hose straps with stainless mounting screws
-Qty 2, 1/8 NPT plugs
This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components, but we will not assist with tuning and/or interfacing to the OE harness, ECU, or FPDM(s).
This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.
Fore Innovations shipping & returns
- All Fore Innovations products require professional installation and are for off-road motorsport use only.
To start a return or ask a question, contact us with your order number.
Fitting available at the shop — ask about installation.
