Fore Innovations
INCLUDES
This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components, but we will not assist with tuning and/or interfacing to the OE harness, ECU, or FPDM(s).
SN95 4V L2 Fuel System (dual pump)
$1,787.00
Fuel Pumps & Fuel Systems
Specifications
- Brand
- Fore Innovations
- SKU
- 55-622
- Category
- Fuel Pumps & Fuel Systems
Specs are taken from the manufacturer listing. Confirm fitment for your car before ordering.
Details
1200 rwhp capable return fuel system with simple and effective hose routing. The feed line run the fuel rails in series and terminates with our stainless/ceramic valve F2i fuel pressure regulator.
- up to 1200 rwhp, clean and effective hose routing
- Fuel rails routed in SERIES
- Fuel Pressure Regulator installed AFTER the rails.

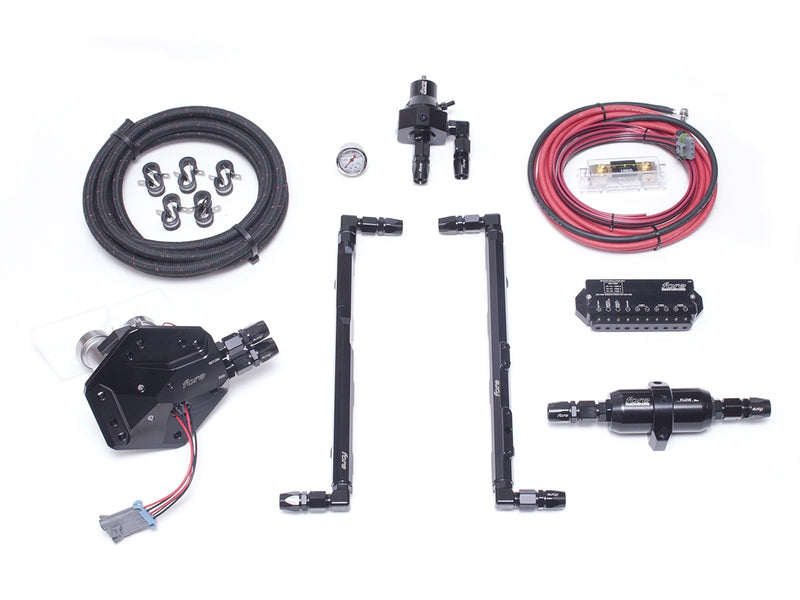

INCLUDES
- SN95 Fuel Pump Module (dual pump)
- 88mm Inline Fuel Filter
- F2i Fuel Pressure Regulator
- SN95 4V Billet Fuel Rails
- All fittings, hose, and hardware necessary to complete typical fuel line plumbing:
35 feet of fuel line and 10 matching hose ends
Qty 5, AN to o-ring straight fittings
Qty 5, AN to o-ring 90 degree low profile fittings
Qty 1, o-ring plug
Qty 2, 0.6 o-ring extensions
Qty 12, hose straps with stainless mounting screws
Qty 2, 1/8 NPT plugs
Qty 5, AN to o-ring straight fittings
Qty 5, AN to o-ring 90 degree low profile fittings
Qty 1, o-ring plug
Qty 2, 0.6 o-ring extensions
Qty 12, hose straps with stainless mounting screws
Qty 2, 1/8 NPT plugs
This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components, but we will not assist with tuning and/or interfacing to the OE harness, ECU, or FPDM(s).
This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.
Fore Innovations shipping & returns
- All Fore Innovations products require professional installation and are for off-road motorsport use only.
